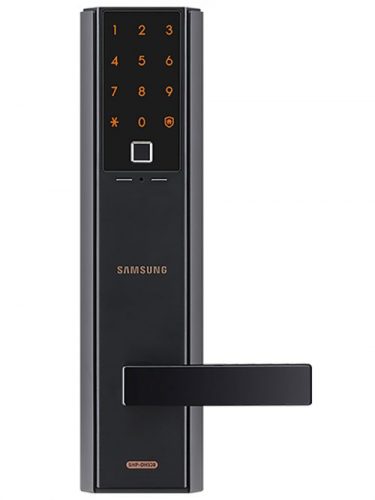

Samsung SMART Lever Handle Door Lock (Fingerprint version) SHP-DH538 (Grey Model)

$499.00

Secure your door with the SHP-DH538 Samsung Smart Digital Fingerprint Mortise Door Lock with Lever Handle. New, Innovative and Seamless design.
Use Numerical Passcode, Fingerprint or Mechanical Key to enter. Simple, easy, quick entry.
• Mortise Style Lock
• Lever (Turn) Handle
• Seamless touch panel
• Grey and Black

• 1 Master user code (4-12 digit)
• Up to 100 User Passcode (4-12 digit) / Fingerprint
• Includes 5 Emergency Mechanical Keys
• Supports Door Thickness Between 40-60mm (1-9/16 to 2-3/8”)
• Installation Guide and Drilling Template Included

Product code: Samsung SHP-DH538 (Grey Model)

Description

Details

Specification

Additional Information

Details

Applicable Door Depth: 40-60mm (1-9/16 to 2-3/8″) *

Applicable Door Spacing: The lock requires a clearance at min. 4-1/2 inches from the edge of the door.

Lock style: Mortise Lock with Lever (Turn Handle)

  • Seamless Orange Back Lit Touchpad Screen
  • Colour: Copper and Black Lock Body
  • High Quality Functions. Various access methods including your Numeric Passcode, RF Key Tag, Emergency Override Mechanical Key, and Emergency 9V battery terminal for easy entry.
  • 1 Master code (4-12 digit).
  • Up to 100 User Passcode (4-12 digit) / Fingerprint
  • Automatic or Manual locking capabilities
  • Double Locking Option
  • Random Security Code
  • Double Authentication
  • Auto Wake Up Feature
  • Childproof Lock with Knob Feature
  • Keypad volume control. Device volume adjustable in 3 levels (including mute)

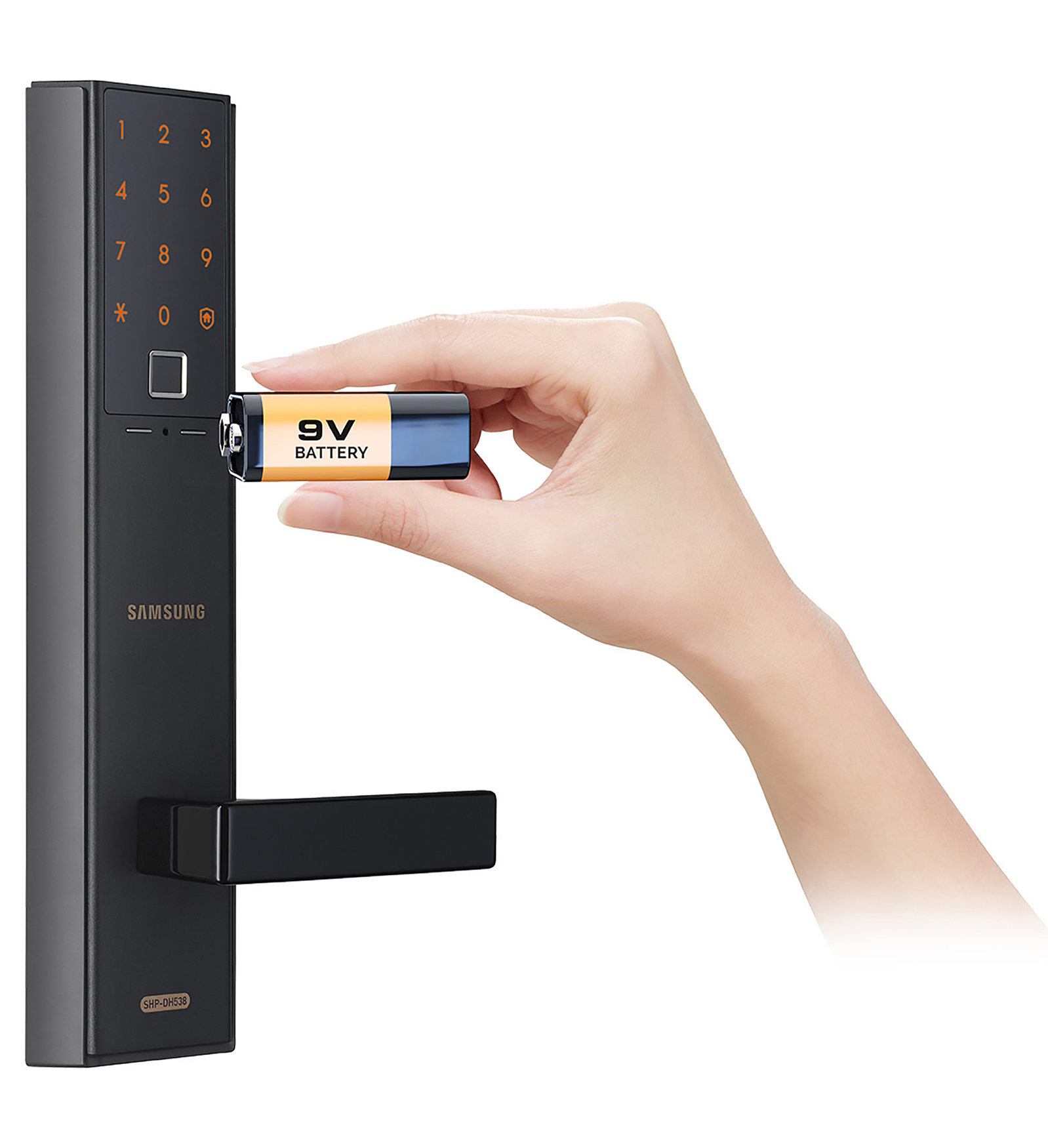

  • Emergency Power Supply. Use a 9V battery from the outside to power the lock temporarily in case the batteries run out
  • Protects you and your family in case of emergencies: Device unlocks automatically when it detects abnormal high temperature inside, allowing you and your family to exit safely
  • Low battery indicator function. Sounds of low battery and indicator on the touchpad screen
  • Battery operated: DC 6V AA Alkaline Battery (4). Based on regular use of 10 times a day, batteries will last approximately 1 year.
  • Includes 5 Emergency Mechanical Keys
*Also available for door thicknesses 61-80mm. Please contact us directly.

Design

Samsung Door Locks have a sleek modern design that complements any interior or exterior door for residential homes, apartments, or commercial business offices.

Red Dot Award, Good Design Award, iF Design Award

Easy to Use

Use the digital touchscreen numeric keypad to enter a passcode, Fingerprint or the mechanical key to enter. Close the door and the lock will automatically lock the door for you. Never worry about whether the door is locked behind you.

Security

  • Rigorously tested construction, random security code feature, intrusion alarm, fire detection sensor, and anti-tampering lockout.
  • Protects you and your family in case of emergencies: Device unlocks automatically when it detects abnormal high temperature inside, allowing you and your family to exit safely
  • Automatic double-locking system, keep your home ever more secure
  • Randomly generated code feature prevents any fingerprint marks left on the screen
  • Double authorization mode capability: Access of entry granted after both PIN code and fingerprint have been authenticated

Installation

Can be installed on doors thicknesses 40-60mm (1-9/16 – 2-3/8 inches). Drilling template for mortise holes included. Can be installed on the left or right hinge doors.

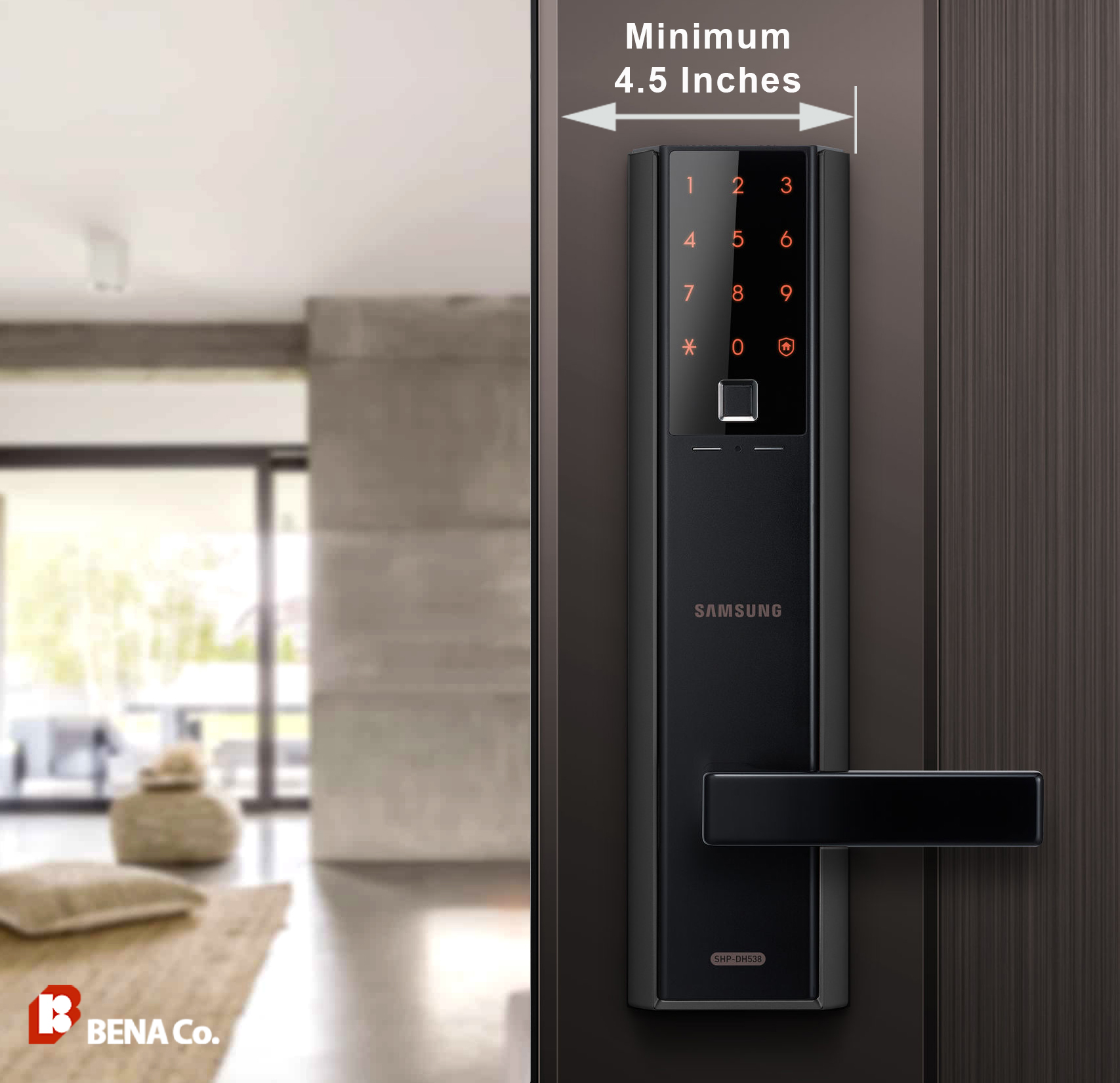

A minimum of 4-1/2 inches on the face of the door is required. Please consult the below image to measure your installation space. The SHP-538 requires a minimum of 4.5 inches of flat space from the edge of the door to any glass moulding, paneling or decorative beveling.

Need installation service? Please contact us directly!

Also available for door thicknesses 61-80mm. Please contact us directly.

Bena Co. image of brown door with installation space of 4.5 inches showing

Specifications

Master PIN Code4~12 digit combination
CapacityUser PIN Code (4-12 Digits)100
Fingerprint100

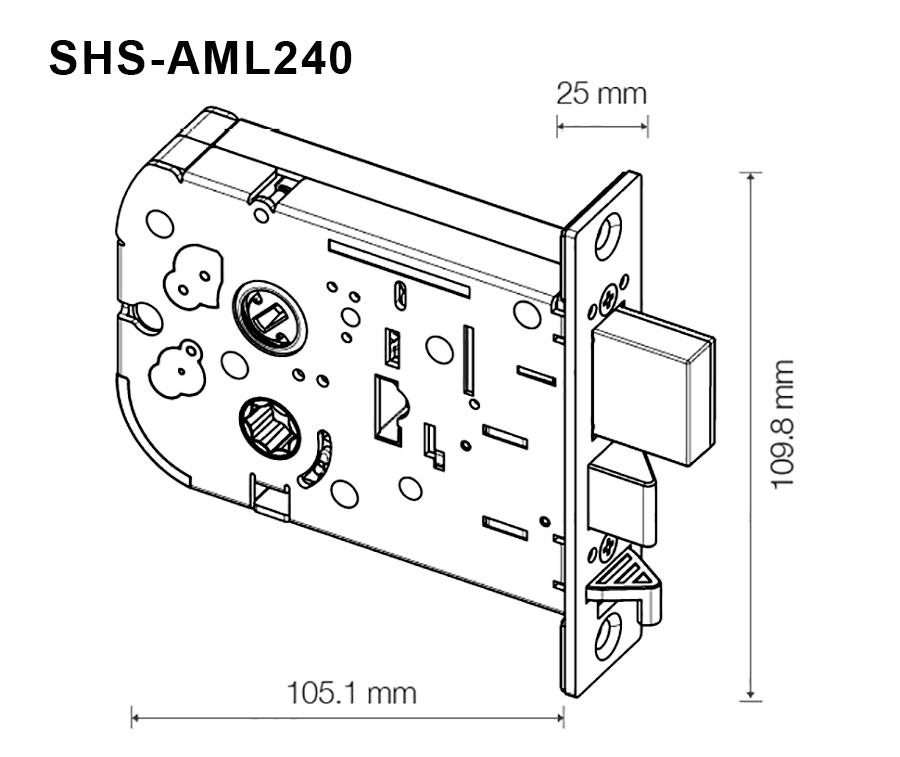

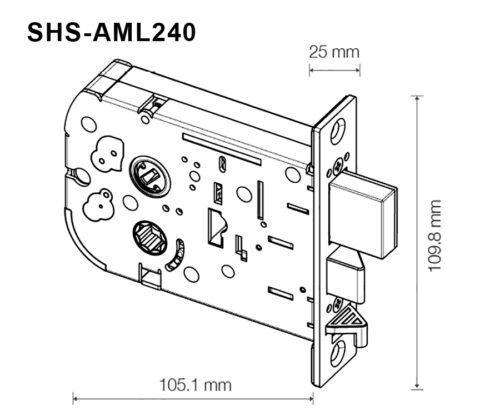

LocksetMortise Lock AML 240
Applicable Door Depth

40~60mm (1-9/16 – 2-3/8 inches)

Mortise shaft for 40-60mm door thickness included with the lock.

Mortise Shaft Extensions are available for door thicknesses (60mm-80mm). Please contact us directly.

MaterialZn, Al, ABS
Humidity20~80%
Temperature – Interior-20°C ~ +55°C
PowerDC 6V AA Alkaline Battery (4)
Battery LifeApprox. 12 Months (Ten Times Per Day)
Product Size (width×height×depth)Exterior Body81.9×320×66.8 (mm) 3-3/16×12-9/16×2-5/8(inches)
Interior Body79×290×80.3 (mm) 3-1/8×11-7/16×3-3/16 (inches)

Included in the Box

  • Interior and Exterior Unit
  • Interior Mounting Plate
  • Regular Mortise
  • Strike Parts (Strike and Dust Box)
  • Handle Shaft (40-50mm and 50-60mm door thicknesses)
  • Handle Shaft Spring
  • Key Tail Piece
  • Screw Set
  • Emergency Manual Keys (5)
  • AA Batteries (4)
  • User Manual
