Product Description
DETAILS:
• Applicable Door Depth: 40-60mm (1-1/16 to 2-3/8″)
• Applicable Door Spacing: The lock requires a clearance at min. 4-1/2 inches from the edge of the door.

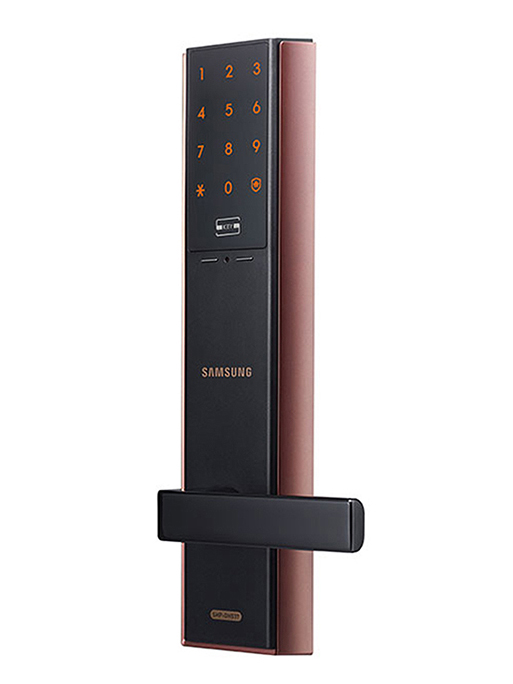

• Lock style: Mortise Lock with Lever (Turn Handle)

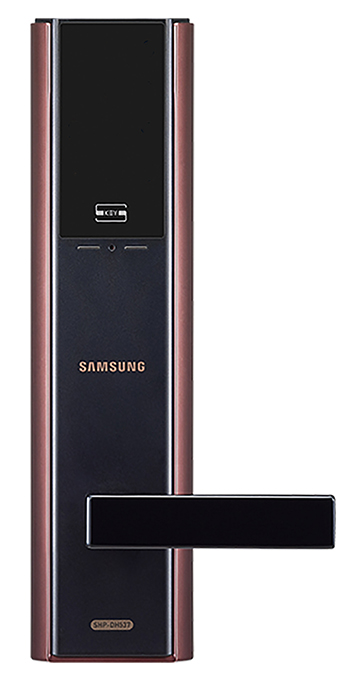

• Seamless touchpad screen
• Colour: Copper and Black lock body

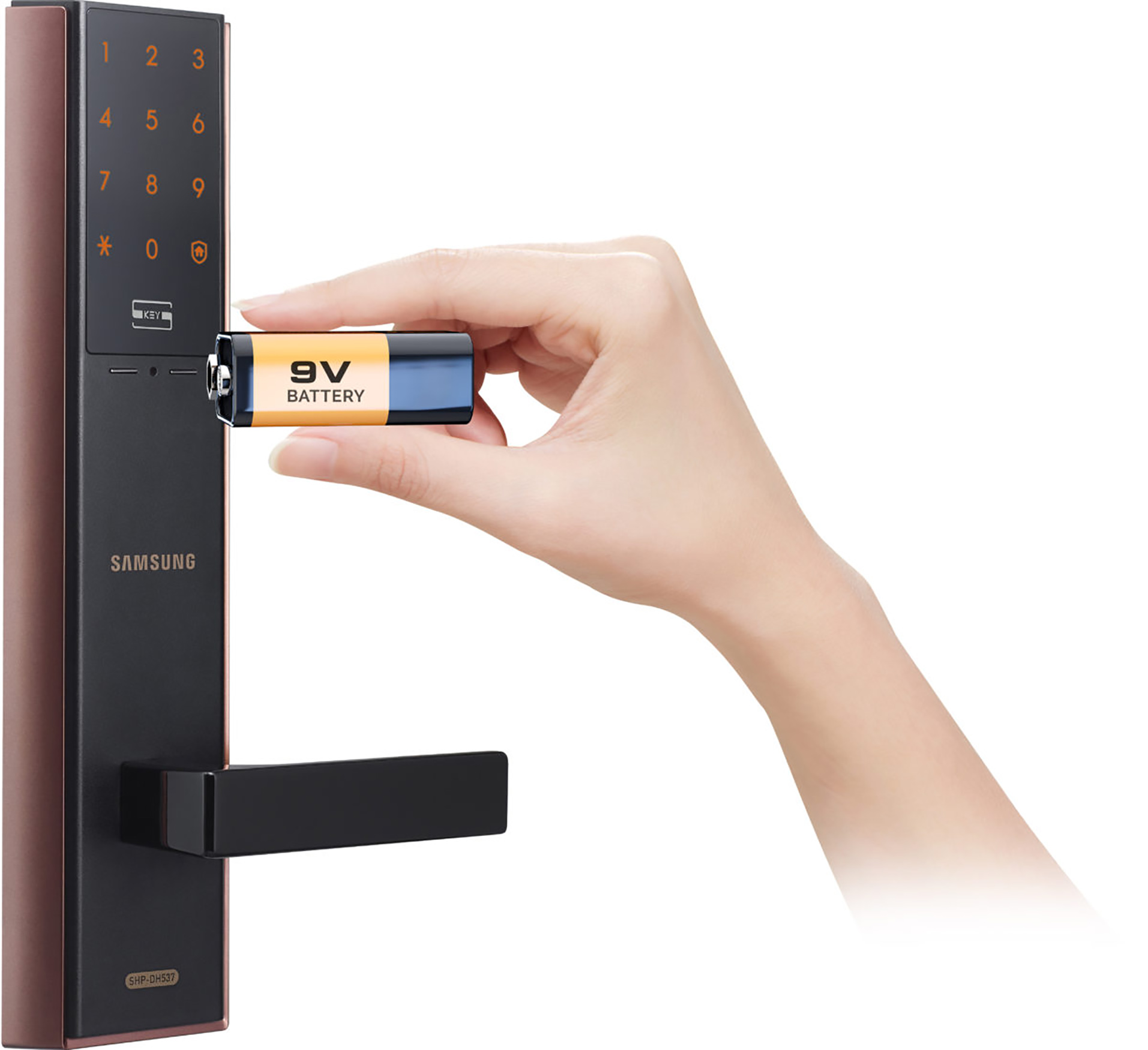

• High quality functions. Various access methods including your Numeric Passcode, RF Key Tag, Emergency Override Mechanical Key, and Emergency 9V battery terminal for easy entry.
• 1 Master code (4-12 digit).
• Up to 100 User Passcode (4-12 digit) / RF Key
• Automatic or Manual locking capabilities.
• Keypad volume control. Device volume adjustable in 3 levels (including mute)
• Low battery indicator function. Sounds of low battery and indicator on the touchpad screen
• Battery operated: DC 6V AA Alkaline Battery (4). Based on regular use of 10 times a day, batteries will last approximately 1 year.
• Includes 5 Emergency Mechanical Keys
•
DESIGN:

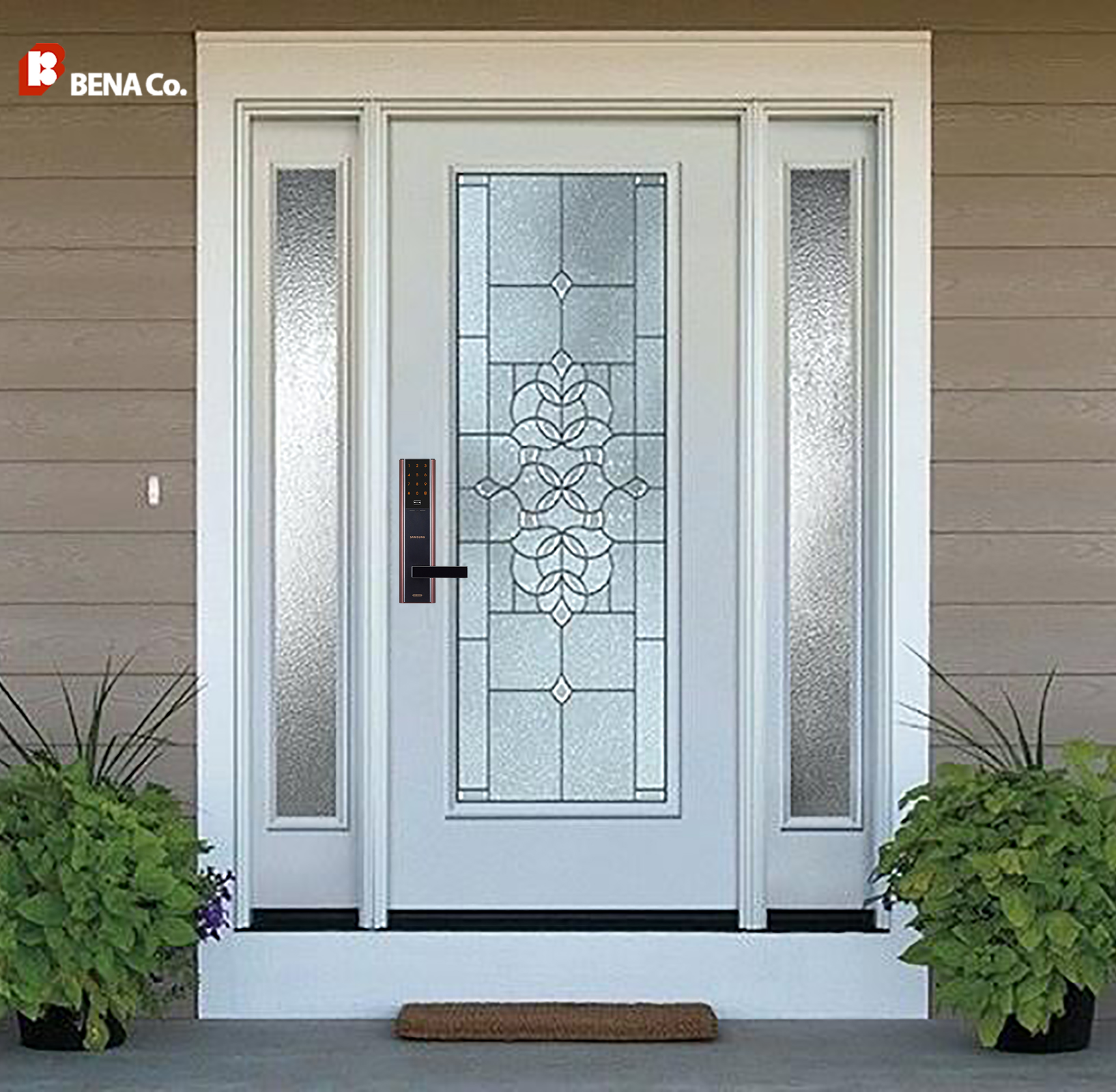

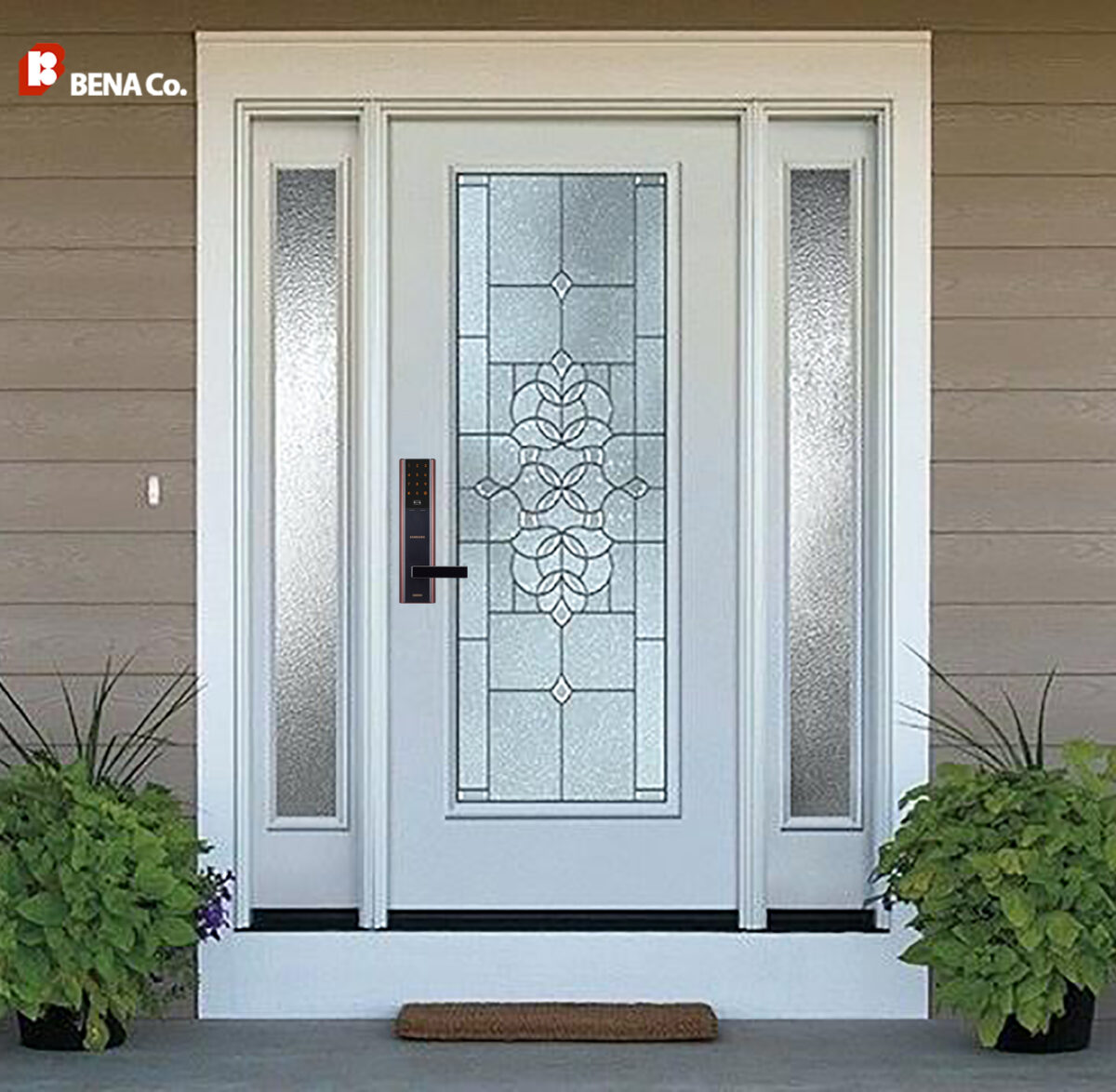

• Samsung Door Locks have a sleek modern design that complements any interior or exterior door for residential homes, apartments, or commercial business offices.
EASY TO USE:
• Use the digital touchscreen numeric keypad to enter a passcode, RF key tag or the mechanical key to enter. Close the door and the lock will automatically lock the door for you. Never worry about whether the door is locked behind you.
INSTALLATION:
• Can be installed on doors 40-60mm (1-1/16 – 2-3/8 inches). Drilling template for mortise holes included. Can be installed on the right or left-hand side.

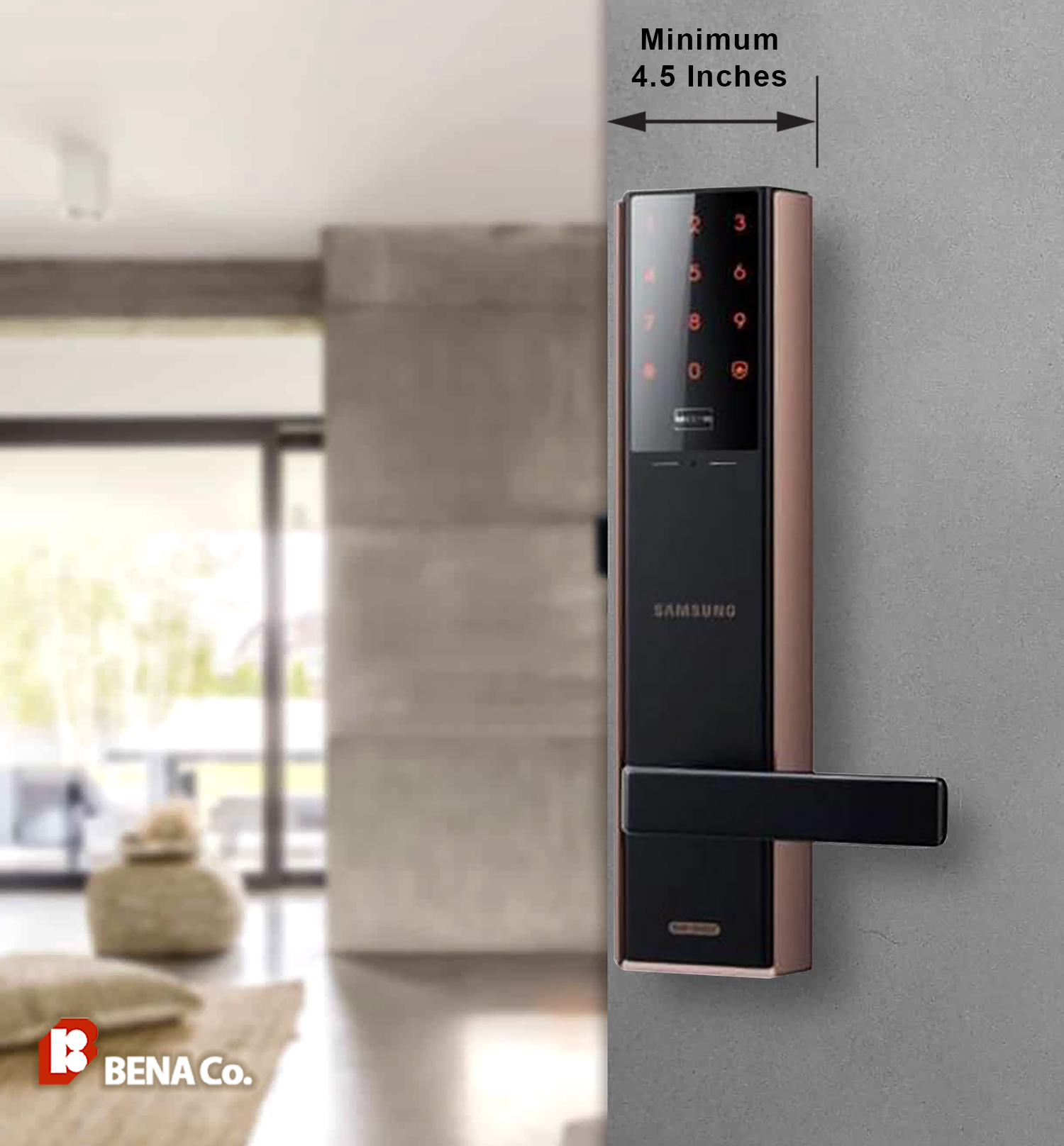

• Minimum of 4-1/2 inches on the face of the door is required.
SECURITY:
• Rigorously tested construction, random security code feature, intrusion alarm, fire detection sensor, and anti-tampering lockout.
• Protects you and your family in case of emergencies: Device unlocks automatically when it detects abnormal high temperature inside, allowing you and your family to exit safely
• Automatic double-locking system, keep your home ever more secure
• Randomly generated code feature prevents any fingerprint marks left on the screen
• Double authorization mode capability: Access of entry granted after both PIN code and RF key tag have been authenticated
SPECIFICATIONS:
| Master PIN Code (4~12 digit combination) | 1 | ||
| Capacity | User PIN Code (4-12 Digits) | 100 | |
| RF Key | 100 | ||
| Lockset | Mortise Lock AML 240 | ||
| Applicable Door Depth | 40~60mm (1-1/16 – 2-3/8 inches)
Mortise shaft for 40-60mm door thickness included with the lock. Mortise Shaft Extensions are available for door thicknesses (60mm-80mm). Please contact us directly. |
||
| Material | Zn, Al, ABS | ||
| Humidity | 20~80% | ||
| Temperature – Interior | -20℃ ~ +55℃ | ||
| Power | DC 6V AA Alkaline Battery (4) | ||
| Battery Life | Approx. 12 Months (Ten Times Per Day) | ||
| Product Size (width×height×depth) | Exterior Body | 81.9×320×66.8 (mm) 3-3/16×12-9/16×2-5/8(inches) | |

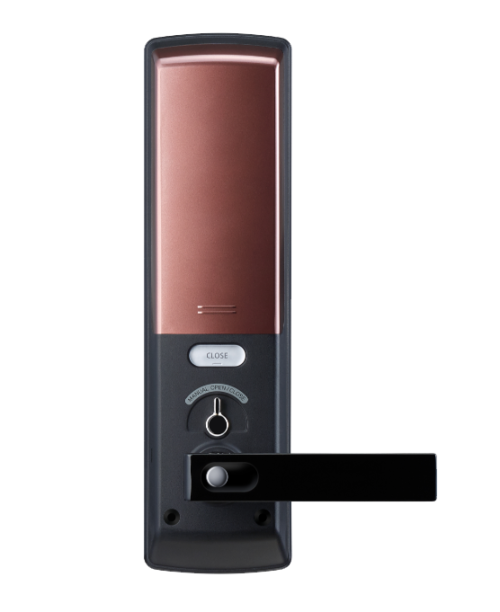

| Interior Body | 79×290×80.3 (mm) 3-1/8×11-7/16×3-3/16 (inches) | ||
